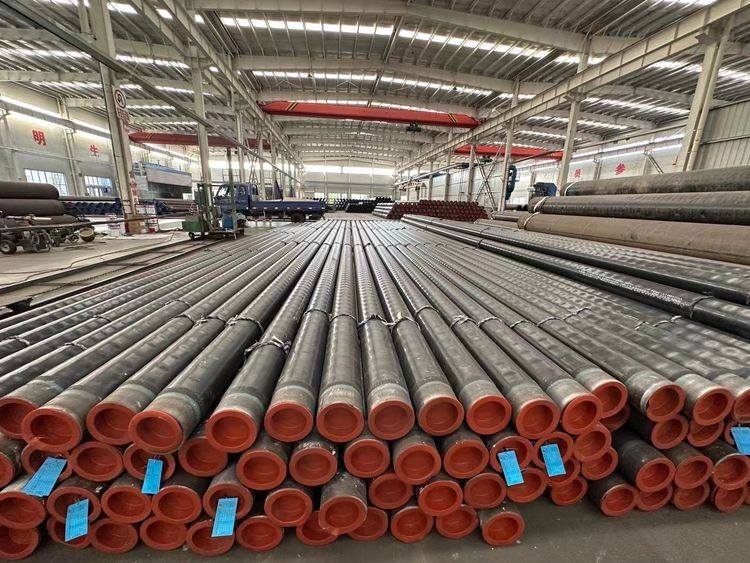

Pwodwi:Liy Tiyo, API Liy Tiyo, Seamless Liy Tiyo, Kabòn Steel Liy Tiyo
Spesifikasyon:
Dyamèt ekstèn (OD): 73-630mm
Epesè mi (WT): 6-35mm
LONGÈ: 5.8/6/11.8/12m
Estanda tiyo:
API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70
API 5L PSL1/PSL2 L210,L245,L290,L320,L360,L390,L415,L450,L485Fen: Fout kare/Fut plen (koupe dwat, koupe scie, koupe flanbo), pwent bizote/fil
LINE TIYO COATINGS
- Fusion Bonded Epoxy (FBE) Kouch
- Twa Kouch Polyethylene (3PE) Kouch
- Twa Kouch Polypropylène (3PP) Kouch
- Epoxy Coal Pitch Antikorozyon Kouch
- Silicone Antikorozyon Kouch
- Entèn kouchSifas:Nwa Penti / Lwil Penti / Anti-rouye lwil oliv / Anti-Korozif kouch

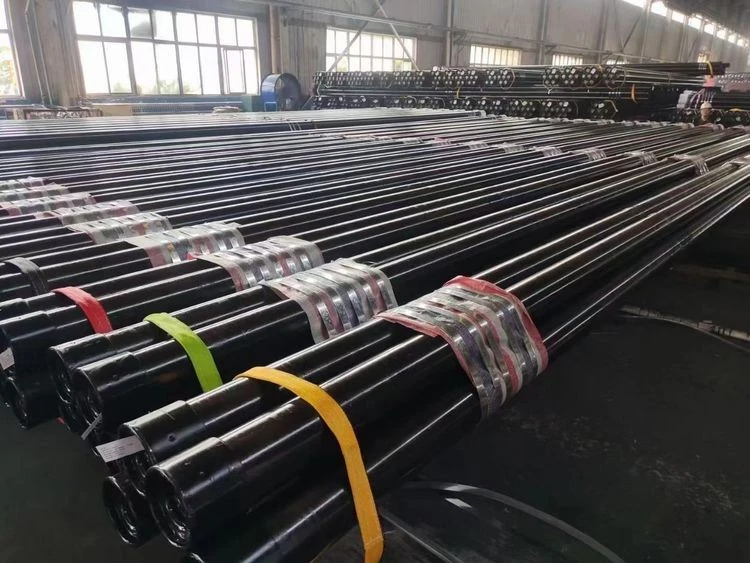

Anbalaj:Pakèt, bouchon plastik ploge, papye ki enpèmeyab/sak vlope
Aplikasyon:Pou transpò nan endistri petwòl ak gaz natirèl
Tiyo liy se yon tib ki fèt ak asye kabòn segondè fòs. Li se tipikman manifaktire dapre spesifikasyon metalijik API 5L devlope pa Enstiti Ameriken Petwòl (API). Materyèl la anvan tout koreksyon ka swa san pwoblèm oswa soude asye kabòn oswa tiyo asye pur. Pwodui sa a ka itilize pou konstwi tiyo ki transpòte yon varyete resous tankou gaz natirèl, lwil oliv, petwòl, ak dlo. API 5L liy tiyo ki disponib nan dyamèt divès kalite sòti nan de pous a 48 pous. Gwosè li ak dyamèt ki nesesè pou yon tiyo varye selon kantite gaz oswa likid li te gen entansyon pote ak presyon li dwe kenbe tèt ak.
Tiyo liy san pwoblèm
Steel Klas: B, X42, X52, X60, X65, X70
Dimansyon: 1"/2" - 24"
Pwosesis: cho woule, cho agrandi
Soude liy tiyo
Steel Klas: B, X42, X52, X60, X65, X70, X80
Dimansyon: 2" - 30"
Pwosesis: ERW, SSAW, LSAW, HFW, JCOE.
Estanda: API 5L / ISO 3183 cho woule
Kalite: san pwoblèm / ERW / soude / fabrike / CDW
Gwosè Dyamèt Eksteryè: 3/8" NB Pou 30" NB (Nominal Bore Size)
Epesè mi: orè 20 pou pwograme XXS (pi lou sou demann) jiska 250 mm epesè
Longè: 5 a 7 mèt, 09 a 13 mèt, yon sèl longè o aza, doub longè o aza ak Customize gwosè.
Tiyo Fin: Plain Fen / Bizote Fen / Coupling
Kouch andigman: Kouch Epoksidik / Kouch Penti Koulè / 3LPE Kouch.
Klas: API 5l Klas B X42, API 5l Klas B X46, API 5l Klas B X52, API 5l Klas B X56, API 5l Klas B X60, API 5l Klas B X65, API 5l Klas B X70
Tiyo liy yo ka kategori nan diferan kalite. Tiyo sa yo klase dapre kalite likid ak atik transpòte yo.
Spesifikasyon
-
DIMANSYON AK GWO TIYO LINE
NPS
O. D.
Epesè miray nominal
DN
Pous
mm
SCH
5S
SCH
10S
SCH
10
SCH
20
SCH
30
SCH
40
SCH
60
SCH
80
SCH
100
SCH
120
SCH
140
SCH
160
STD
XS
XXS
50
2″
60.3
1.65
2.77
–
–
–
3.91
–
5.54
–
–
–
8.74
3.91
5.54
11.07
65
2-1/2″
73
2.11
3.05
–
–
–
5.16
–
7.01
–
–
–
9.53
5.16
7.01
14.02
80
3″
88.9
2.11
3.05
–
–
–
5.49
–
7.62
–
–
–
11.13
5.49
7.52
15.24
90
3-1/2″
101.6
2.11
3.05
–
–
–
5.74
–
8.08
–
–
–
–
5.74
8.08
–
100
4″
114.3
2.11
3.05
–
–
–
6.02
–
8.58
–
11.13
–
13.49
6.02
8.56
17.12
125
5″
141.3
2.77
3.4
–
–
–
6.55
–
9.53
–
12.7
–
15.88
6.55
9.53
18.05
150
6″
168.3
2.77
3.4
–
–
–
7.11
–
10.97
–
14.27
–
18.26
7.11
10.97
21.95
200
8″
219.1
2.77
3.76
–
6.35
7.04
8.18
10.31
12.7
15.09
18.26
20.62
23.01
8.18
12.7
22.23
250
10″
273.1
3.4
4.19
–
6.35
7.8
9.27
12.7
15.09
18.26
21.44
25.4
28.58
9.27
12.7
25.4
300
12″
323.9
3.96
4.57
–
6.35
8.38
10.31
14.27
17.48
21.44
25.4
28.58
33.32
9.53
12.7
25.4
350
14″
355.5
3.96
4.78
6.35
7.92
9.53
11.13
15.09
19.05
23.83
27.79
31.75
35.71
9.53
12.7
–
400
16″
406.4
4.19
4.78
6.35
7.92
9.53
12.7
16.66
21.44
26.19
30.96
36.53
40.49
9.53
12.7
–
450
18″
457.2
4.19
4.78
6.35
7.92
11.13
14.27
19.05
23.83
39.36
34.93
39.67
45.24
–
–
–
500
20″
508
4.78
5.54
6.35
9.53
12.7
15.09
20.62
26.19
32.54
38.1
44.45
50.01
–
–
–
550
22″
558.8
4.78
5.54
6.35
9.53
12.7
–
22.23
28.58
34.93
41.28
47.63
53.98
–
–
–
600
24″
609.6
5.54
6.35
6.35
9.53
14.27
17.48
24.61
30.96
38.89
46.02
52.37
59.54
–
–
–
Si gwosè w ap chèche yo pa nan tablo ki anwo a, tanpri ou lib pou fè nou konnen. Nou pral fè efò pou satisfè bezwen ou yo.
KONPOZISYON CHIMIK TIYO LINE
API 5L PSL-1 Eleman Chimik
Steel Klas
Fraksyon mas, ki baze sou fonn ak analiz pwodwi %
C
Mn
P
S
V
Nb
Ti
max.
max.
min.
max.
max.
max.
max.
max.
L175 oswa A25
0.21
0.60
–
0.030
0.030
–
–
–
L175P oswa A25P
0.21
0.60
0.045
0.080
0.030
–
–
–
L210 oswa GR. A
0.22
0.90
–
0.030
0.030
–
–
–
L245 oswa GR. B
0.26
1.20
–
0.030
0.030
–
–
–
L290 oswa X42
0.26
1.30
–
0.030
0.030
–
–
–
L320 oswa X46
0.26
1.40
–
0.030
0.030
–
–
–
L360 oswa X52
0.26
1.40
–
0.030
0.030
–
–
–
L390 oswa X56
0.26
1.40
–
0.030
0.030
–
–
–
L415 oswa X60
0.26
1.40
–
0.030
0.030
–
–
–
L450 oswa X65
0.26
1.45
–
0.030
0.030
–
–
–
L485 oswa X70
0.26
1.65
–
0.030
0.030
–
–
–
- API 5L PSL-2 Eleman Chimik
Steel Klas
Fraksyon mas, ki baze sou fonn ak analiz pwodwi %
CEC (%) max
C
Si
Mn
P
S
V
Nb
Ti
Lòt
CEIIW
CEPcm
L245M oswa BM
0.22
0.45
1.20
0.025
0.015
0.05
0.05
0.04
–
0.43
0.25
L290M oswa X42M
0.22
0.45
1.30
0.025
0.015
0.05
0.05
0.04
–
0.43
0.25
L320M oswa X46M
0.22
0.45
1.30
0.025
0.015
0.05
0.05
0.04
–
0.43
0.25
L360M oswa X52M
0.22
0.45
1.40
0.025
0.015
–
–
–
–
0.43
0.25
L390M oswa X56M
0.22
0.45
1.40
0.025
0.015
–
–
–
–
0.43
0.25
L415M oswa X60M
0.12
0.45
1.60
0.025
0.015
–
–
–
–
0.43
0.25
L450M oswa X65M
0.12
0.45
1.60
0.025
0.015
–
–
–
–
0.43
0.25
L485M oswa X70M
0.12
0.45
1.70
0.025
0.015
–
–
–
–
0.43
0.25
L555M oswa X80M
0.12
0.45
1.85
0.025
0.015
–
–
–
–
0.43
0.25
L625M oswa X90M
0.10
0.55
2.10
0.020
0.010
–
–
–
–
–
0.25
L690M oswa X100M
0.10
0.55
2.10
0.020
0.010
–
–
–
–
–
0.25
L830M oswa X120M
0.10
0.55
2.10
0.020
0.010
–
–
–
–
–
0.25
Baj popilè: API5l tiyo liy san pwoblèm, Lachin API5l manifaktirè tiyo liy san pwoblèm, Swèd, faktori
